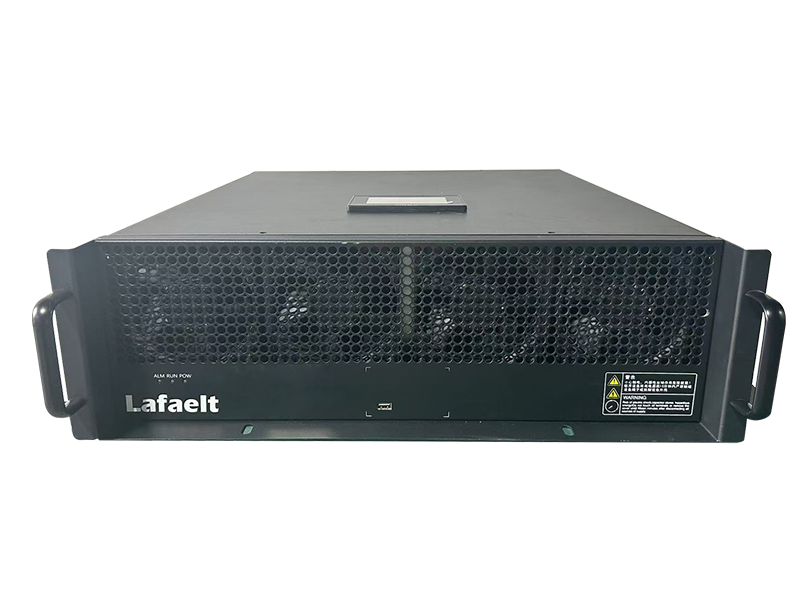

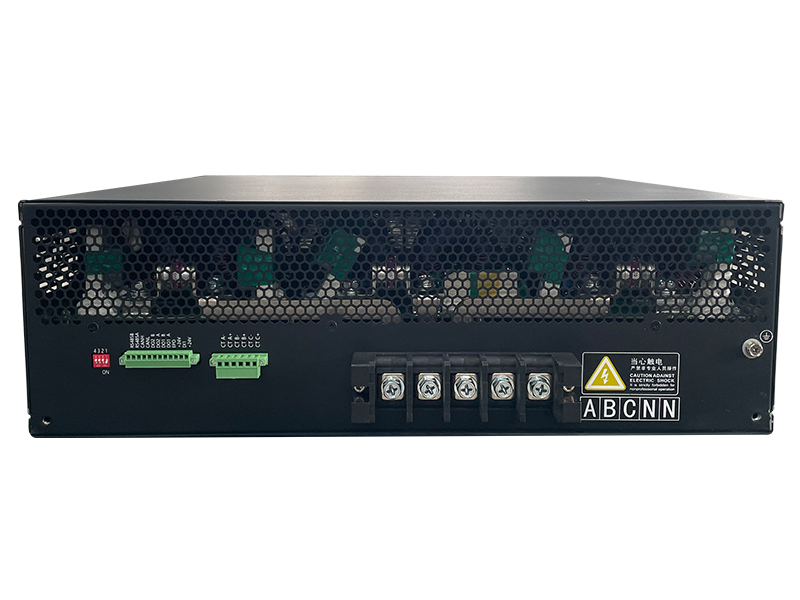

Wall mounted Active harmonic filter is specifically designed for a single modular wall mounted for electrical harmonic mitigation. The wall mounted active harmonic filter adopts advanced modular design. Typically, the active harmonic filter system consists of no more than six AHF modules and an 7 inches HMI screen seperately. However, the wall mounted active harmonic filter module can be working independently as a complete harmonic filtering system with a 4.3 inches screen on its back side which is easily operating when it is installed on the wall.
Lafaelt active harmonic power 6.0 is an advanced solution to solve the harmonic problem with IGBT/SIC. Our active power filter offters a selectable priority function of harmonic filtering, power factor correction(reactive power compensation) and Three-phase imbalance regulation.
Suppresses harmonic currents generated by non-linear loads
More than 97% harmonic filtering rate
Even times harmonic mitigation, 2nd, 4th, 6th harmonics problem solving.
Automatic detuning eliminates system resonance concerns
Customized HMI for wall mounted or rack mounted type
Reduces line and transformer losses, improves equipment overheating, and extends equipment life
80KHz switching frequency
Three-phase imbalance regulation
Wall mounted type for non-space or small project
1. 6.0 version Active Harmonic Filter is even smaller and better performance.
2. Quick response: the response time of Active Harmonic Filter is less than 300us, making the harmonic eliminated before causing harm
3. Highly integrated: single Active Harmonic Filter module capacity from 50A to 200A.
4. Easy to maintenance: The Active Harmonic Filter benefits from its excellent design, the control unit modularization greatly shortens the repair and maintenance time.
5. Adaptability: Lafaelt 6.0 Active Harmonic Filter can be running at the 60% of the grid voltage
6, Unique toplogical structure: highest switching frequency 80KHz top leading all over the world.
7. Even time harmonics: Real compensation from 2 to 50 times.
8. ASVG Mode: Compensate for harmonics and power factor simultaneously
Power supply voltage | 220x (1±15%) V ,400x (1±15%) ,V480x(1±10%)or 690x (1±10%) V |
Power supply frequency | 50/60x (1 ±2%) Hz |
Harmonic feature | 2nd ~ 50th orders （Eliminate all or selected） |
Filter degree settings | Each harmonic can be individually set |
Harmonic compensation rate | ≧97% |
Response time | ≦300 us (Full response time ≦5ms) |
Compensation method | Full harmonic compensation, full reactive power compensation, harmonic reactive power co-compensation, or three-phase unbalanced compensation |
Switching frequency | Equivalent 80KHz |
Parallel operation capacity | Singel module |
Compensation capacity | Full compensation within the equipment capacity, if exceeded, compensate with the maximum output capacity |
Protection | Device overcurrent, device over-heat, grid under-voltage, grid phase mismatch, DC busbar under-voltage, overload automatic current limiting protection |
Cooling | forced air cooling |
Power consumption | ＜3% of the rated output capacity |
Protection clas | IP30 (higher can be customized) |
Operating environment temerature | -10°C~ +45°C |
Color | RAL7021 Black sand pattern (other color can be supplied if required) |
Relative humidity | <90%(25°C) |
Noise | <65dB |
Communication | MODBUS RTU（RS485） Ethernet communication function is optional; upper computer monitoring software is optional |
| Current(A) | Part Number | Dimension(MM) | Installation type | Net Weight(KG) |
| 50 | LAF-400-50-4 | 560*600*178 | Wall | 37 |
| 100 | LAF-400-100-4 | 560*600*178 | Wall | 37 |
| 150 | LAF-400-150-4 | 560*600*178 | Wall | 37 |
| 175 | LAF-400-175-4 | 560*600*178 | Wall | 37 |
| 200 | LAF-400-200-4 | 560*600*178 | Wall | 37 |
